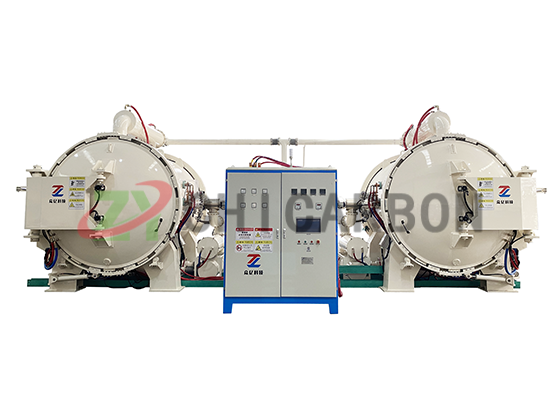

2200℃ Atmosphere Protected Sintering Furnace
keyword：
Atmosphere sintering furnace
Vacuum Atmosphere Sintering Furnace
Sintering furnace
2200℃ Atmosphere Protected Sintering Furnace
Product Description:
·Application: Atmosphere sintering furnace is mainly used for the sintering of powder metallurgy, tungsten, aluminium-nickel-cobalt permanent magnets, Smco5, Sm2co17, silicon carbide, ceramics, cemented carbide, molybdenum, and aluminium-iron shed, titanium alloys, and other alloys of the sintering of the vacuum, atmosphere sintering.
Features:
·Products using low energy consumption, the product is equipped with a fast cooling system, compared with the traditional equipment cooling time is long, greatly shortening the production cycle of the product.
·High operating temperature, the maximum operating temperature: 2200 ℃.
·Equipment using constant temperature field optimisation design, graphite rods (plates) or metal tungsten, molybdenum and other resistance heating, furnace temperature field uniformity.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace body overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: one tow one or one tow two
·Maximum operating Temperature: 2200 ℃
·High-temperature Zone Volume Size: L:200-6000mm × W:200-1500mm × H:200-1500mm (or customised according to user's requirements)
·Working Atmosphere in the Furnace: vacuum, nitrogen, argon, hydrogen
·Temperature Uniformity: ≤±5-±15℃ (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: infrared thermometer
·Temperature Control: PID segmented programme control and manual control
Product Specifications:
| Product Model Specification | ZY-TZL-400 | ZY--TZL-600 | ZY-TZL-800 | ZY-TZL-1050 | ZY-TZL-1500 |
| Size and Volume | 400×400×800 128L | 600×600×1800 648L | 800×800×2000 1280L | 1050×1050×2900 3200L | 1500×1500×6000 13500L |
| Rated Temperature (°C) | 2200 | 2200 | 2200 | 2200 | 2200 |
| Limiting Temperature (°C) | 2400 | 2400 | 2400 | 2400 | 2300 |
| Configuration Power (KW) | 150 | 350 | 450 | 800 | 2000 |
| Temperature Difference in high Temperature Zone (℃) | ±5 | ±5 | ±10 | ±15 | ±15 |
| Temperature Control Method | PID segmented programme control and manual control | ||||
| Heating Method | Graphite, tungsten, molybdenum, etc. resistance heating | ||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen | ||||
| Ultimate Vacuum (pa) | 0.0067 (empty furnace, cooling) (or customised according to customer requirements) | ||||
Product Showcase：
