Graphite Carbonization Furnace
keyword：
Graphite Carbonization Furnace
carbonization furnace
Graphite Carbonization Furnace
Product Description:
It is a kind of industrial heat treatment equipment specially used for the production of high performance carbon materials such as artificial graphite, anode materials, carbon/carbon composites and so on. It is used to carbonise carbon-containing precursors (e.g. petroleum coke, asphalt, resin, etc.) at high temperature (usually 1000°C~3000°C) in an inert atmosphere (e.g. nitrogen, argon) or in a vacuum environment, so as to form a high-purity graphite structure.
Features:
·According to the needs of high temperature sintering process time can be a single set of power supply configuration of multiple furnaces, respectively, in turn, a number of furnaces for the heating and cooling power off, to achieve the continuous operation of the equipment work, improve production efficiency.
·Maximum temperature: 3200 ℃, meet a variety of materials, high temperature purification, graphitisation, sintering treatment.
·Adopting IGBT power supply, energy saving about 15% than traditional thyristor power supply. Less high harmonic, less pollution to the power grid, high power factor, will not interfere with the operation of electronic equipment.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with two modes of full automation and manual.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Maximum Temperature: 3200℃.
·Working Atmosphere: nitrogen, argon.
·Temperature Uniformity: ≤±20℃.
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement Mode: imported far-infrared two-colour pyrometer, 900℃-3500℃. (Low temperature infrared thermometer can be configured according to requirements)
·Temperature Control: PID segmented programme control and manual control.
·Temperature Control Accuracy: ±1℃.
Product Specifications:
| Product Model Specification | ZY-SML-400 | ZY-SML-500 | ZY-SML-600 | ZY-SML-700 | ZY-SML-800 |
| Size and Volume | Φ400×H800mm 100L | Φ500×H1000mm 196L | Φ600×H1300mm 367L | Φ700×H1500mm 576L | Φ800×H2000mm 1004L |
| Rated Temperature (°C) | 3200 | 3200 | 3200 | 2900 | 2800 |
| Limiting Temperature (°C) | 3300 | 3300 | 3300 | 3000 | 3000 |
| Configuration Power (KW) | 200 | 250 | 350 | 600 | 900 |
| Frequency (HZ) | 2500 | 1500 | 1000 | 1000 | 1000 |
| Rated Supply Voltage (V) | 380 | ||||
| Heating Output Voltage (V) | 750 | ||||
| Temperature Control Method | PID segmented programme control and manual control | ||||
| Heating Method | IGBT induction heating | ||||
| Operating Atmosphere | Nitrogen, argon | ||||
| Ultimate Vacuum (pa) | 200 (empty furnace, cooling) (or customised according to customer requirements) | ||||

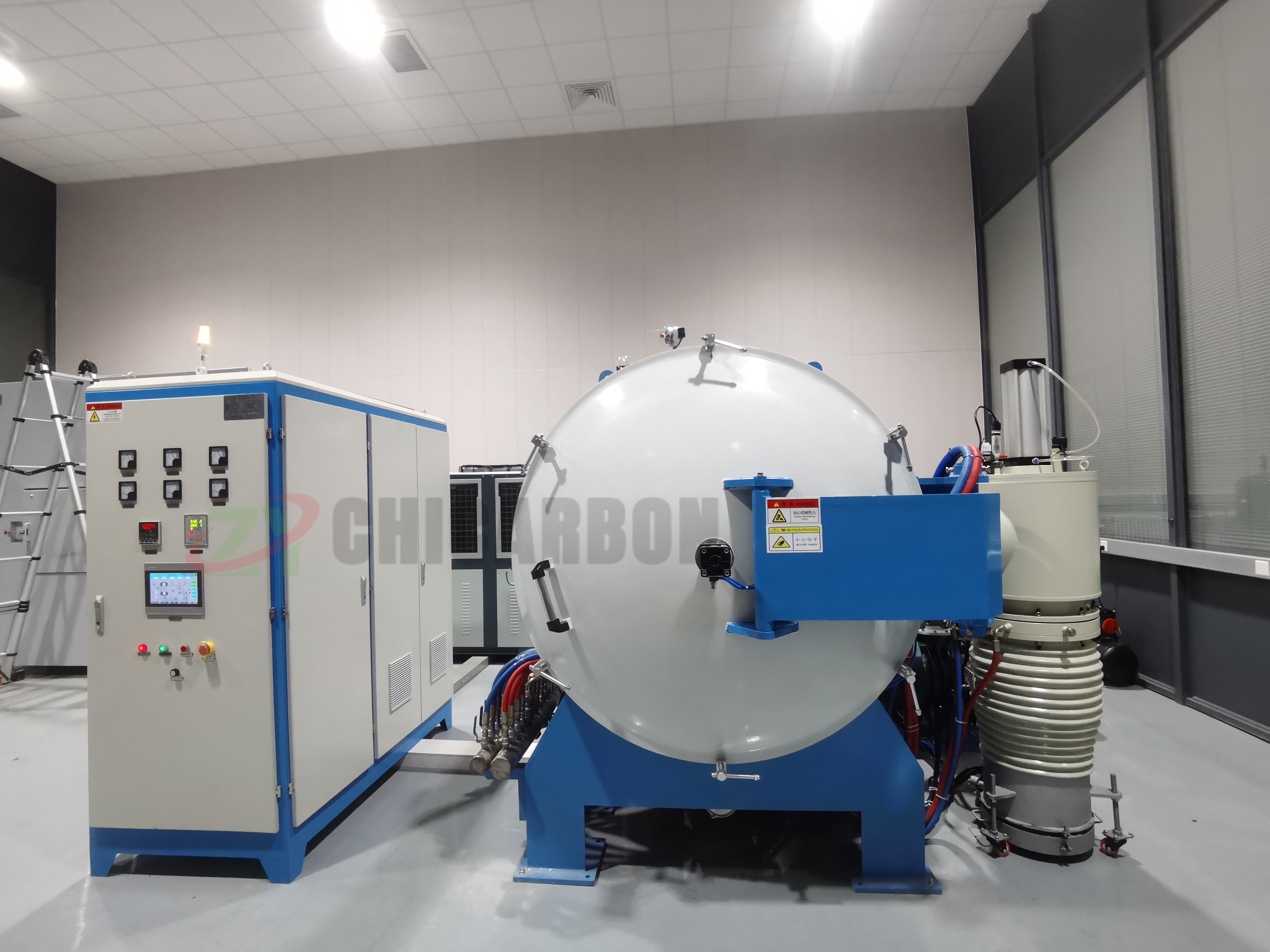

Product Showcase：
