Vacuum Diffusion Welding Furnace
keyword：
Vacuum diffusion welding furnace
Integrated Diffusion Welding Furnace
Vacuum Diffusion Welding Furnace
Product Description:
Vacuum diffusion welding furnace is mainly used for aviation, aerospace, shipping and other types of engine blades, falcon head, missile fuses and other parts of the diffusion welding process, diffusion welding welding is widely used, can be completed between different types of metal materials and metal materials diffusion welding, but also to complete the diffusion welding between different types of metal materials and ceramic materials, non-metallic materials.
Features:
·Products can achieve vacuum hot pressing and sintering in one piece, which greatly shortens the production cycle of the product.
·High operating temperature, maximum operating temperature: 2400℃
·The equipment adopts the optimised design of constant temperature field, metal belt, graphite bar (plate) resistance heating or IGBT medium frequency induction heating, the temperature field in the furnace is uniform.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace body overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: one tow one or one tow two
·Maximum Temperature: 2300 ℃
·High-temperature Zone Volume Size: L:200-6000mm × W:200-1500mm × H:200-1500mm.(or customised according to user's requirements)
·Working Atmosphere: vacuum, nitrogen, argon, hydrogen
·Temperature Uniformity: ≤±5-±15℃ (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: infrared thermometer
·Temperature Control: PID segmented programme control and manual control
Product Specifications:
| Product Model Specification | ZY-CHL-400 | ZY-CHL-600 | ZY-CHL-800 | ZY-CHL-1050 | ZY-CHL-1500 |
| Size and Volume | 400×400×800 128L | 600×600×1800 648L | 800×800×2000 1280L | 1050×1050×2900 3200L | 1500×1500×6000 13500L |
| Rated Temperature (°C) | 2200 | 2200 | 2200 | 2200 | 2200 |
| Limiting Temperature (°C) | 2400 | 2400 | 2400 | 2400 | 2300 |
| Configuration Power (KW) | 150 | 350 | 450 | 800 | 2000 |
| Temperature Difference in high Temperature Zone (℃) | ±5 | ±8 | ±10 | ±15 | ±15 |
| Temperature Control Method | PID segmented programme control and manual control | ||||
| Heating Method | Graphite, tungsten, molybdenum, etc. resistance heating | ||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen | ||||
| Ultimate Vacuum (pa) | 5 (empty furnace, cooling) (or customised according to customer requirements) | ||||

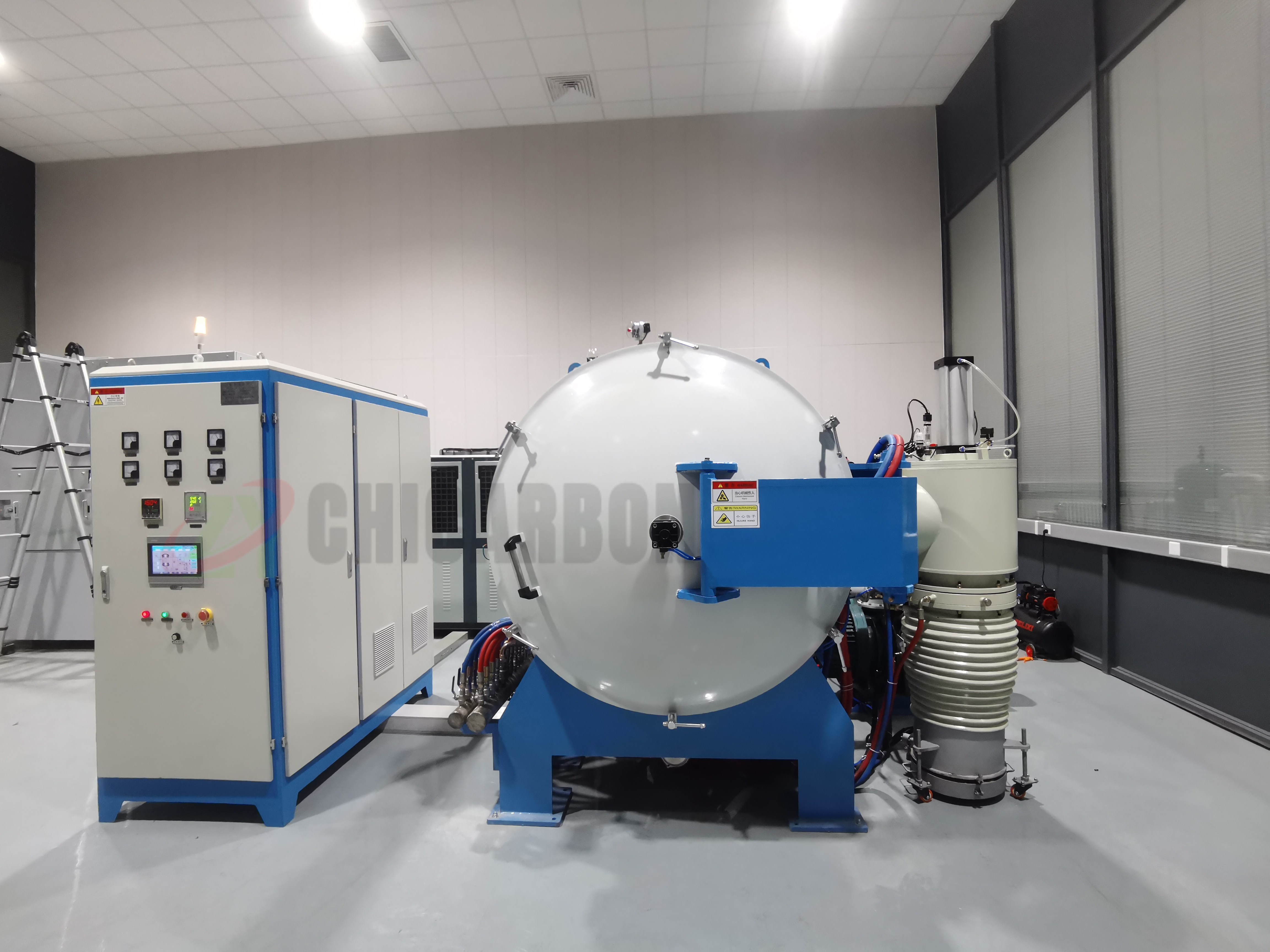

Product Showcase：
