PI Film graphitising Furnace
keyword：
PI Film Graphitising Furnace
Anode Material Graphitising Furnace
Atmosphere Graphitising Furnace
PI Film graphitising Furnace
Product Description:
·Uses: It is applied to high-temperature physical purification and high-temperature graphitising of synthetic graphite, natural graphite, battery anode materials, graphene, artificial graphite thermal conductivity touch (PI), and ceramic composite materials.
Features:
·According to the needs of high temperature sintering process time can be a single set of power supply configuration of multiple furnaces, respectively, in turn, a number of furnaces for the heating and cooling power off, to achieve the continuous operation of the equipment work, improve production efficiency.
·The maximum temperature is 3200 ℃, which can meet a variety of materials, high-temperature purification, graphitisation, sintering treatment.
·Adopting IGBT power supply, energy saving about 15% than traditional thyristor power supply. Less high harmonics, less pollution to the grids, high power factor, will not interfere with the operation of electronic equipment.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with two modes of full automation and manual.
·High security, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
· Maximum Temperature: 3200℃.
· Working Atmosphere: nitrogen, argon.
· Temperature Uniformity: ≤±20℃.
· Temperature Measurement Accuracy: 0.1%-0.5%
· Temperature Measurement Mode: imported far-infrared two-colour pyrometer, 900℃-3500℃. (Low temperature infrared thermometer can be configured according to requirements)
· Temperature Control: PID segmented programme control and manual control.
· Temperature Control Accuracy: ±1℃.
Product Specifications:
|
Product Model Specification |
ZY-SML-400 |
ZY-SML-500 |
ZY-SML-600 |
ZY-SML-700 |
ZY-SML-800 |
| Size and Volume |
Φ400×H800mm 100L |
Φ500×H1000mm 196L |
Φ600×H1300mm 367L |
Φ700×H1500mm 576L |
Φ800×H2000mm 1004L |
| Rated Temperature (°C) |
3200 |
3200 |
3200 |
2900 |
2800 |
| Limiting Temperature (°C) |
3300 |
3300 |
3300 |
3000 |
3000 |
| Configuration Power (KW) |
200 |
250 |
350 |
600 |
900 |
| Frequency (HZ) |
2500 |
1500 |
1000 |
1000 |
1000 |
| Rated Supply Voltage (V) |
380 |
||||
| Heating Output Voltage (V) |
750 |
||||
| Temperature Control Method |
PID segmented programme control and manual control |
||||
| Heating Method |
IIGBT induction heating |
||||
| Operating Atmosphere | Nitrogen, argon | ||||
| Ultimate Vacuum (pa) |
200（empty furnaces, cooling）（or customised according to customer requirements） |
||||

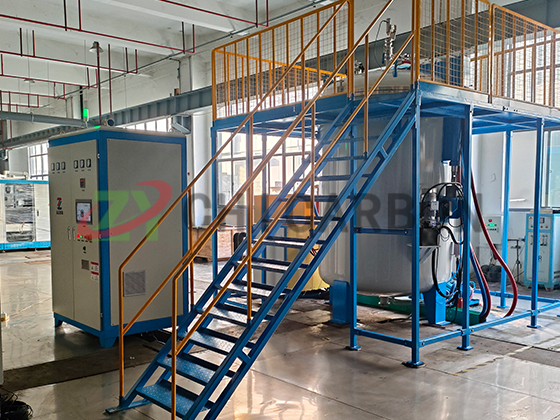

Product Showcase：
