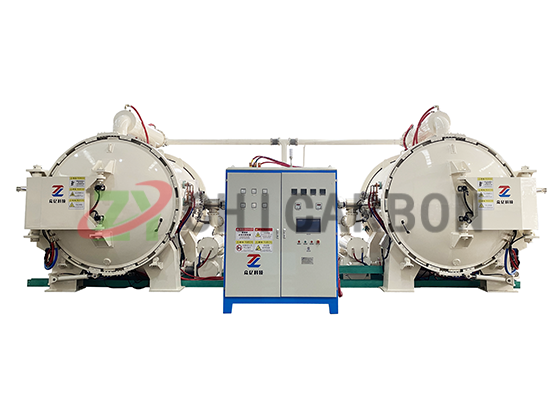

One tow two sintering furnace
keyword：
One tow two sintering furnace
ultra-high temperature vacuum sintering furnace
high temperature sintering furnace manufacturers
One tow two sintering furnace
Product Description:
·Application: Mainly used in powder metallurgy, metal materials, ceramic and magnetic materials, cemented carbide and other sintering process, but also to meet the product brazing, annealing and tempering process, it is a very wide range of applicability of the vacuum furnace.
Features:
·Products can achieve dewaxing and sintering in one piece.
·High operating temperature, maximum operating temperature: 2200℃.
·The equipment adopts the optimised design of constant temperature field, graphite rod (plate) resistance heating, uniform temperature field in the furnace, it is the advanced high temperature sintering equipment for pressureless sintering and low vacuum sintering.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: one tow one or one tow two
·Maximum operating Temperature: 2200 ℃.
·High-temperature Zone Volume Size: L:200-6000mm × W:200-1500mm × H:200-1500mm.(or customised according to user's requirements)
·Working Atmosphere in the Furnace: vacuum, nitrogen, argon, hydrogen and so on.
·Temperature Uniformity: ≤±5-±15℃. (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: infrared thermometer.
·Temperature Control: PID segmented programme control and manual control.
Product Specifications:
| Product Model Specification | ZY-CHL-400 | ZY-CHL-600 | ZY-CHL-800 | ZY-CHL-1050 | ZY-CHL-1500 | |
| Size and Volume (mm) | 400×400×800 128L |
600×600×1800 648L |
800×800×2000 1280L |
1000×1000×3000 3200L |
1500×1500×6000 13500L |
|
| Rated Temperature (°C) | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Limiting Temperature (°C) | 2400 | 2400 | 2400 | 2400 | 2300 | |
| Configuration Power (KW) | 150 | 350 | 450 | 800 | 2000 | |
| Temperature Difference in high Temperature Zone (℃) | ±5 | ±8 | ±10 | ±15 | ±15 | |
| Temperature Control Method | PID segmented programme control and manual control (Japanese conductive instruments) | |||||
| Heating Method | Graphite rod (plate) resistance | |||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen, etc. | |||||
| Ultimate Vacuum (pa) | 5 (empty furnace, cooling) (or customised according to customer requirements) | |||||
Product Showcase：
