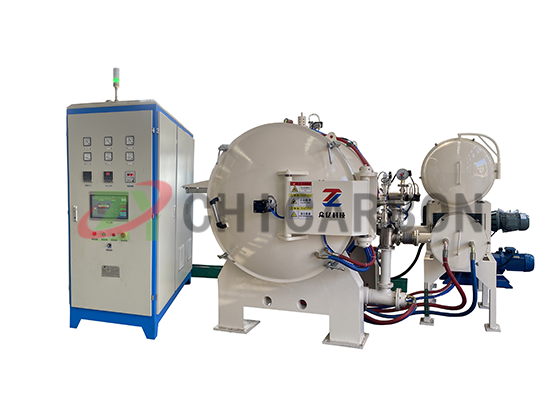

Vacuum Silicon Carbide sintering Furnace
keyword：
Silicon Carbide Pressureless Sintering Furnace
Vacuum Silicon Carbide Sintering Furnace
Silicon Carbide Sintering Furnace manufacturer
Vacuum Silicon Carbide sintering Furnace
Product Description:
·Use:Mainly used in the sintering process of powder metallurgy, metal materials, ceramic and magnetic materials, cemented carbide, silicon carbide, CC materials and so on, it is a vacuum furnace with very wide applicability.
Features:
·Low energy consumption, the product is equipped with a fast cooling system, which greatly shortens the production cycle of the product compared with the long cooling time problem of the traditional equipment.
·High operating temperature, maximum operating temperature: 2200℃.
·The equipment adopts the optimised design of constant temperature field, graphite rod (plate) or metal tungsten, molybdenum and other resistance heating, the temperature field in the furnace is uniform.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace body overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: one tow one or one tow two
·Maximum Operating Temperature: 2200 ℃.
·High-temperature Zone Volume Size: L:200-6000mm × W:200-1500mm × H:200-1500mm.(or customised according to user's requirements)
·Working Atmosphere in the Furnace: vacuum, nitrogen, argon, hydrogen and so on.
·Temperature Uniformity: ≤±5-±15℃. (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: infrared thermometer.
·Temperature Control: PID segmented programme control and manual control.
Product Specifications:
| Product Model Specification | ZY-CHL-400 | ZY-CHL-600 | ZY-CHL-800 | ZY-CHL-1050 | ZY-CHL-1500 | |
| Size and Volume (mm) | 400×400×800 128L |
600×600×1800 648L |
800×800×2000 1280L |
1050×1050×2900 3200L |
1500×1500×6000 13500L |
|
| Rated Temperature (°C) | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Limiting Temperature (°C) | 2400 | 2400 | 2400 | 2400 | 2300 | |
| Configuration Power (KW) | 150 | 350 | 450 | 800 | 2000 | |
| Temperature Difference in High Temperature Zone (℃) | ±5 | ±8 | ±10 | ±15 | ±15 | |
| Temperature Control Method | PID segmented programme control and manual control (Japanese conductive instruments) | |||||
| Heating Method | Graphite, tungsten, molybdenum, etc. resistance heating | |||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen, etc. | |||||
| Ultimate Vacuum (pa) | 5 (empty furnace, cooling) (or customised according to customer requirements) | |||||
Product Showcase：
