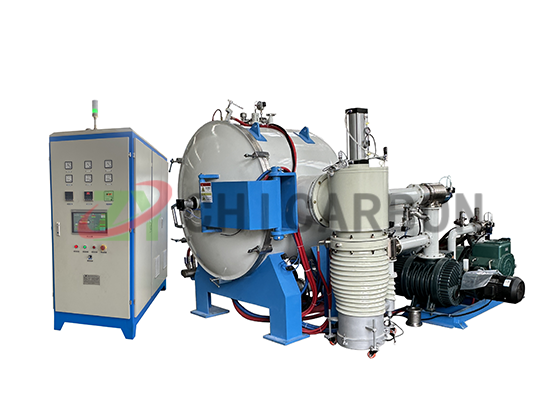

Vacuum degreasing integrated sintering Furnace
keyword：
Vacuum degreasing sintering furnace
High temperature degreasing sintering furnace
Vacuum degreasing integrated sintering Furnace
Product Description:
·Application: It is mainly used for degreasing and sintering of metallic or non-metallic materials such as cemented carbide, powder materials, magnetic materials and special ceramics.
Features:
·The product can achieve dewaxing and sintering in one piece, which greatly shortens the production cycle of the product.
·High operating temperature, maximum operating temperature: 1600℃.
·The equipment adopts the optimised design of constant temperature field, graphite rod (plate) resistance multi-zone heating, uniform temperature field in the furnace, it is the advanced high temperature sintering equipment for pressureless sintering and low vacuum sintering.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace body overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: one tow one or one tow two
·Maximum Operating Temperature:1500℃
·High-temperature Zone Volume Size: L:200-6000mm × W:200-1500mm × H:200-1500mm.(or customised according to user's requirements)
·Working Atmosphere in the Furnace: vacuum, nitrogen, argon, hydrogen and so on.
·Temperature Uniformity: ≤±5-±15℃. (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: infrared thermometer.
·Temperature Control: PID segmented programme control and manual control.
Product Specifications:
| Product Model Specification | ZY-TZL-400 | ZY-TZL-600 | ZY-TZL-800 | ZY-TZL-1000 | ZY-TZL-1500 | |
| Size and Volume (mm) | 400×400×800 128L |
600×600×1800 648L |
800×800×2000 1280L |
1000×1000×3000 3000L |
1500×1500×6000 13500L |
|
| Rated Temperature (°C) | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Limiting Temperature (°C) | 1650 | 1650 | 1650 | 1650 | 1650 | |
| Configuration Power (KW) | 90 | 120 | 180 | 300 | 800 | |
| Temperature Difference in High Temperature Zone (℃) | ±5 | ±5 | ±10 | ±15 | ±15 | |
| Temperature Control Method | PID segmented programme control and manual control (Japanese conductive instruments) | |||||
| Heating Method | Graphite Resistance Heating | |||||
| Operating Atmosphere | Vacuum, nitrogen, argon | |||||
| Ultimate Vacuum (pa) | 0.0067 (empty furnace, cooling) (or customised according to customer requirements) | |||||
Product Showcase：
