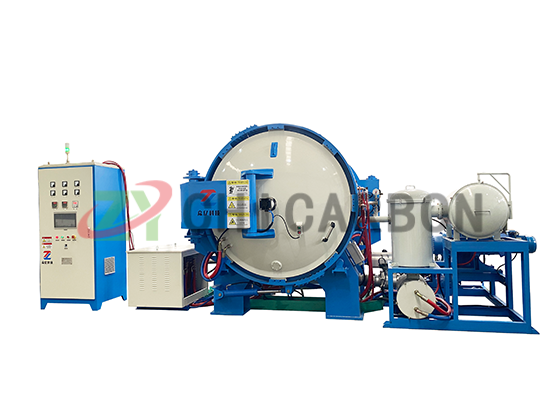

Horizontal High Temperature Vacuum sintering Furnace
keyword：
High-temperature vacuum sintering furnace
vacuum sintering furnace
horizontal vacuum sintering furnace
Horizontal High Temperature Vacuum sintering Furnace
Product Description:
·Use: Mainly used in powder metallurgy, metal materials, ceramic materials and magnetic materials, hard alloys, such as sintering process, but also to meet the product brazing, annealing and tempering process, is a very wide applicability of the vacuum furnace.
Features:
·Products using low energy consumption, the product is equipped with a fast cooling system, compared with the traditional equipment cooling time is long, greatly shortening the production cycle of the product.
·High operating temperature, the maximum operating temperature: 2200 ℃.
·Equipment using constant temperature field optimisation design, graphite rods (plates) or metal tungsten, molybdenum and other resistance heating, furnace temperature field uniformity.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace body overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: one tow one or one tow two
·Maximum operating Temperature: 2200 ℃.
·High-temperature Zone Volume Size: L:200-6000mm × W:200-1500mm × H:200-1500mm.(or customised according to user's requirements)
·Working Atmosphere in the Furnace: vacuum, nitrogen, argon, hydrogen and so on.
·Temperature Uniformity: ≤±5-±15℃. (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: infrared thermometer.
·Temperature Control: PID segmented programme control and manual control.
Product Specifications:
| Product Model Specification | ZY-CHL-400 | ZY-CHL-600 | ZY-CHL-800 | ZY-CHL-1050 | ZY-CHL-1500 | |
| Size and Volume (mm) | 400×400×800 128L |
600×600×1800 648L |
800×800×2000 1280L |
1050×1050×2900 3200L |
1500×1500×6000 13500L |
|
| Rated Temperature (°C) | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Limiting Temperature (°C) | 2400 | 2400 | 2400 | 2400 | 2300 | |
| Configuration Power (KW) | 150 | 350 | 450 | 800 | 2000 | |
| Temperature Difference in High Temperature Zone (℃) | ±5 | ±8 | ±10 | ±15 | ±15 | |
| Temperature Control Method | PID segmented programme control and manual control (Japanese conductive instruments) | |||||
| Heating Method | Graphite rod (plate) resistance | |||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen, etc. | |||||
| Ultimate Vacuum (pa) |
5 (empty furnace, cooling) (or customised according to customer requirements) |
|||||
Product Showcase：
