Vacuum Hot-pressure sintering Furnace
keyword：
Vacuum hot pressing sintering furnace
new material sintering furnace
hot pressing sintering furnace
metal target hot pressing sintering furnace
vacuum sputtering target hot pressing sintering furnace
Vacuum Hot-pressure sintering Furnace
Product Description:
·Use: It is suitable for metal compounds, inorganic compounds, ceramics, etc. to be sintered under vacuum, high temperature and hot pressure, and can also be sintered under inert atmosphere. Thus completing the densification of the material, preventing deformation, but also has the role of inhibiting nano-powder grain coarsening.
Features:
·Products can achieve vacuum hot pressing and sintering in one piece, which greatly shortens the production cycle of the product.
·High operating temperature, maximum operating temperature: 2400℃.
·The equipment adopts the optimised design of constant temperature field, metal belt, graphite bar (plate) resistance heating or IGBT medium frequency induction heating, the temperature field in the furnace is uniform.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace body overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specification: single station or multi-station.
·Maximum operating Temperature: 2400℃.
·High-temperature Zone Volume Size: according to user requirements.
·Working Atmosphere in the Furnace: vacuum, nitrogen, argon.
·Temperature Uniformity: ≤±5-±15℃. (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: far-infrared thermometer.
·Temperature Control: PID segmented programme control and manual control.
Product Specifications:
| Product Model Specification | ZY-RYL-100 | ZY-RYL-200 | ZY-RYL-400 | ZY-RYL-600 | ZY-RYL-800 | |
| Size of working Area (mm) | Φ100×120 | Φ200×300 | Φ400×600 | Φ600×800 | Φ800×1000 | |
| Rated Temperature (°C) | 2400 | 2400 | 2400 | 2400 | 2400 | |
| Limiting Temperature (°C) | 2600 | 2600 | 2600 | 2600 | 2600 | |
| Configuration Power (KW) | 40 | 100 | 300 | 500 | 800 | |
| Maximum operating Pressure (T) | 5-30 | 10-120 | 20-500 | 30-800 | 30-1200 | |
| Temperature Difference in high Temperature Zone (℃) | ±5 | ±5 | ±10 | ±15 | ±15 | |
| Pressure rise Rate (pa/h) | ≤5 | ≤5 | ≤5 | ≤8 | ≤8 | |
| TemperatureControl Method | PID segmented programme control and manual control (Japanese conductive instruments) | |||||
| Heating Method | Graphite rod (plate) resistance | |||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen, etc. | |||||
| Ultimate Vacuum (pa) | 0.0067 (empty furnace, cooling) (or customised according to customer requirements) | |||||

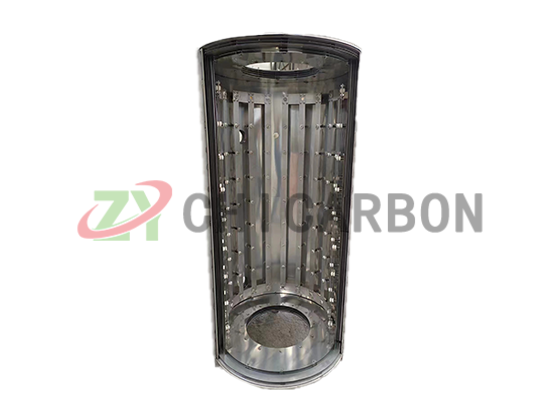

Product Showcase：
