Experimental sintering Furnace
keyword：
Experimental Sintering Furnace
Ultra-high Temperature Sintering Furnace
Medium Frequency Induction Sintering Furnace

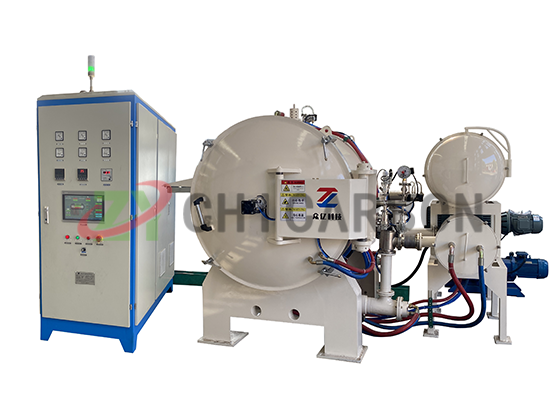

Experimental sintering Furnace
Product Description:
·Application: pressureless sintering of boron carbide ceramics, pressureless sintering of silicon carbide ceramics, sintering of recrystallised silicon carbide ceramics, sintering of aluminium nitride ceramics, sintering of high-performance ceramic substrates, sintering of powder metallurgy, or high-temperature vacuum sintering of other metallic and non-metallic materials.
Features:
·Products can achieve dewaxing and sintering in one piece.
·High operating temperature, maximum operating temperature: 2400℃.
·The equipment adopts the optimised design of constant temperature field, graphite rod (plate) resistance heating, uniform temperature field in the furnace, it is the advanced high temperature sintering equipment for pressureless sintering and low vacuum sintering.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: horizontal or vertical
·Maximum operating Temperature: 2400 ℃.
·High-temperature Zone Volume Size: L:300mm×W:200mm×H:200mm.(or customised according to user's requirements)
·Working Atmosphere in the Furnace: vacuum, nitrogen, argon.
·Temperature Uniformity: ≤ ± 5.
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement Mode: low temperature: tungsten rhenium thermocouple, high temperature: far-infrared thermometer.
·Temperature Control: PID segmented programme control and manual control.
Product Specifications:
| Product Model Specification | ZY-SJL-100 | ZY-SJL-200 | ZY-SJL-250 | ZY-SJL-300 | |
| Size and Volume (mm) | 100×100×200 2L |
200×200×300 12L |
250×250×400 25L |
300×300×400 36L |
|
| Rated Temperature (°C) | 2400 | 2400 | 2400 | 2300 | |
| Limiting Temperature (°C) | 2500 | 2500 | 2500 | 2400 | |
| Configuration Power (KW) |
30 |
40 |
50 |
60 | |
| Temperature Difference in high Temperature Zone (℃) | ±5 | ±5 | ±5 | ±7 | |
| Temperature Control Method | PID segmented programme control and manual control (Japanese conductive instruments) | ||||
| Heating Method | Graphite rod (plate) resistance | ||||
| Operating Atmosphere | Vacuum, nitrogen, argon | ||||
| Ultimate Vacuum (pa) | 5 (empty furnace, cooling) (or customised according to customer requirements) | ||||
Product Showcase：
