Carbon Nanotube High Temperature Purification Furnace
keyword：
mesoporous carbon vacuum purification furnace
high temperature vacuum purification furnace
Carbon nanotube high temperature purification furnace
Carbon Nanotube High Temperature Purification Furnace
Product Description:
·Use: High temperature purification treatment of carbon nanotubes and other materials. Carbon nanotube purification furnace is using high temperature method of purification treatment. High-temperature method is mainly through the control of temperature, the carbon nanotube material heated to (1800 ~ 2200 ℃) the use of filtration, deposition, high-temperature distillation and other physical techniques will be carbon nanotubes in the metal impurities and volatile components of the separation, so as to achieve the purpose of purification.
Features:
·Products using low energy consumption, the product is configured with a fast cooling system, compared with the traditional equipment cooling time is long, greatly shortening the production cycle of the product.
·High operating temperature, maximum operating temperature: 2200℃.
·The equipment adopts the optimised design of constant temperature field, graphite rod (plate) resistance heating, uniform temperature field in the furnace.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with full automation and manual mode.
·High safety, PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace body overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: one tow one or one tow two
·Maximum operating Temperature: 2200 ℃.
·High-temperature Zone Volume Size: L:200-6000mm × W:200-1500mm × H:200-1500mm.(or customised according to user's requirements)
·Working Atmosphere in the Furnace: vacuum, nitrogen, argon, hydrogen and so on.
·Temperature Uniformity: ≤±5-±15℃. (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: infrared thermometer.
·Temperature Control: PID segmented programme control and manual control.
Product Specifications:
| Product Model Specification | ZY-CHL-400 | ZY-CHL-600 | ZY-CHL-800 | ZY-CHL-1050 | ZY-CHL-1500 | |
| Size and Volume (mm) | 400×400×800 128L |
600×600×1800 648L |
800×800×2000 1280L |
1050×1050×2900 3200L |
1500×1500×6000 13500L |
|
| Rated Temperature (°C) | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Limiting Temperature (°C) | 2400 | 2400 | 2400 | 2400 | 2300 | |
| Configuration Power (KW) | 150 | 350 | 450 | 700 | 2000 | |
| Temperature Difference in high Temperature Zone (℃) | ±5 | ±8 | ±10 | ±15 | ±15 | |
| Temperature Control Method | PID segmented programme control and manual control (Japanese conductive instruments) | |||||
| Heating Method | Graphite rod (plate) resistance | |||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen | |||||
| Ultimate Vacuum (pa) | 5 (empty furnace, cooling) (or customised according to customer requirements) | |||||

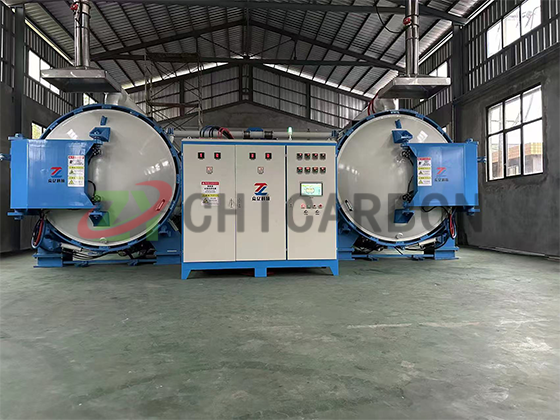

Product Showcase：
