Ultra-high temperature sintering furnace
keyword：
High Temperature Sintering Furnace
Ultra High Temperature Sintering Furnace
Ultra High Temperature Vacuum Sintering Furnace
Ultra-high temperature sintering furnace
Product Description:
·Use: Mainly used for powder metallurgy, metal materials, ceramic and magnetic materials, cemented carbide, carbon materials, and other sintering process, but also to meet the product brazing, annealing and tempering process, is a very wide applicability of the vacuum furnace.
Features:
·Products using low energy consumption, the products are equipped with rapid cooling system, compared with the traditional equipment cooling time is long, greatly reducing the lead time of the product.
·High temperature: the maximum temperature is 2200 ℃.
·Equipment adopting constant temperature field optimisation design, graphite rods (plates) or metal tungsten, molybdenum and other resistance heating, furnace temperature field uniformity.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with bothhautomation and manual mode.
·High safety, with PLC water, electricity, gas automatic control and protection, with over-temperature, water pressure, water flow, furnace body overpressure, water temperature and other protection.
Technical Parameters and Model Specifications:
·Configuration Specifications: one tow one or one tow two
·Maximum Temperature: 2200 ℃
·High-temperature Zone Volume Size: L:200-6000mm × W:200-1500mm × H:200-1500mm.(or customised according to user's requirements)
·Working Atmosphere: vacuum, nitrogen, argon, hydrogen
·Temperature Uniformity: ≤±5-±15℃ (Depending on the size of the high-temperature zone)
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: low temperature: tungsten rhenium thermocouple, high temperature: infrared thermometer
·Temperature Control: PID segmented programme control and manual control
Product Specifications:
| Product Model Specification | ZY-CHL-400 | ZY-CHL-600 | ZY-CHL-800 | ZY-CHL-1050 | ZY-CHL-1500 |
| Size and Volume | 400×400×800 128L |
600×600×1800 648L |
800×800×2000 1280L |
1050×1050×2900 3200L |
1500×1500×6000 13500L |
| Rated Temperature (°C) | 2200 | 2200 | 2200 | 2200 | 2200 |
| Limiting Temperature (°C) | 2400 | 2400 | 2400 | 2400 | 2300 |
| Configuration Power (KW) |
150 |
350 |
450 |
800 | 2000 |
| Temperature Difference in high Temperature Zone (℃) | ±5 | ±8 | ±10 | ±15 | ±15 |
| Temperature Control Method | PID segmented programme control and manual control | ||||
| Heating Method | Graphite, tungsten, molybdenum, etc. resistance heating | ||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen | ||||
| Ultimate Vacuum (pa) | 5 (empty furnace, cooling) (or customised according to customer requirements) | ||||

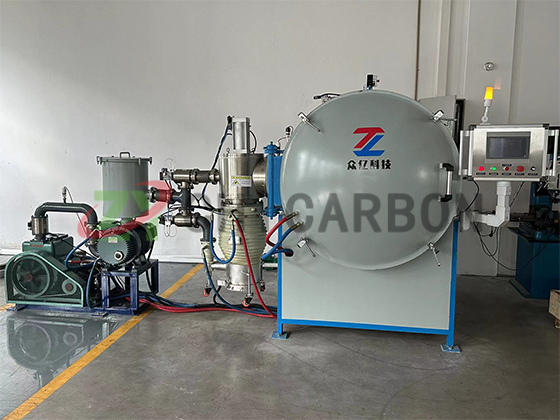

Product Showcase：
