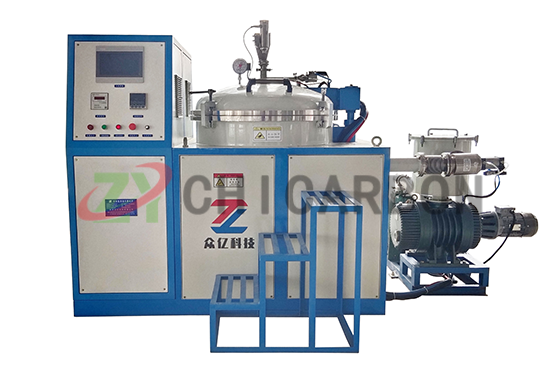

Vacuum Graphitization Furnace
keyword：
Vacuum Graphitization Furnace
Graphitization Furnace
3000℃ Vacuum Graphitization Furnace
Vacuum Graphitization Furnace
Product Description:
·Use: It is applied to high temperature physical purification, high temperature graphitising and high temperature sintering treatment of artificial graphite, natural graphite, carbon nanotubes, carbon materials, ceramic composites, etc.
Features:
·According to the needs of high temperature sintering process time can be a single set of power supply configuration of multiple furnaces, respectively, in turn, a number of furnaces for the heating and cooling power off, to achieve the continuous operation of the equipment work, improve production efficiency.
·Maximum operating temperature: 3200 ℃, can meet a variety of materials, high temperature purification, graphitisation, sintering treatment.
·Adopting IGBT power supply, energy saving about 15% than traditional thyristor power supply. Less high harmonic, less pollution to the power grid, high power factor, will not interfere with the operation of electronic equipment.
·Equipped with programmable controller and human-machine interface, the whole process can be operated and monitored automatically, with two modes of full automation and manual.
·High safety, the intelligent PLC security monitoring system can realize romote control function and can paperless record various parameters. It also equipped with automatic storage system, water, electricity, gas automatic control system, protection system.
Technical Parameters and Model Specifications:
·Maximum operating Temperature: 3000℃.
·Working Atmosphere in the Furnace: nitrogen, argon.
·Temperature Uniformity: ≤±15℃.
·Temperature Measurement Accuracy: 0.1%-0.5%
·Temperature Measurement: imported far-infrared two-colour pyrometer, 1000℃-3200℃. (Low temperature infrared thermometer can be configured according to requirements)
·Temperature Control: PID segmented programme control and manual control.
·The Ultimate heating Rate: 20°C/minute on average. (empty furnace)
Product Specifications:
| Product Model Specification | ZY-ZKSML-300 | ZY-ZKSML-500 | ZY-ZKSML-600 | ||
| Size and Volume |
Φ300×H500mm |
Φ500×H800mm 157L |
Φ600×H1200mm 339L |
||
| Rated Temperature (°C) |
3000 |
3000 |
3000 |
||
| Limiting Temperature (°C) |
3200 |
3200 |
3200 |
||
| Configuration Power (KW) |
150 |
250 |
300 |
||
| Frequency (HZ) | 4000 |
3000 |
2000 |
||
| Rated Supply Voltage (V) |
380 |
||||
| Heating Output Voltage (V) | 400 | ||||
| Temperature Control Method | PID segmented programme control and manual control | ||||
| Heating Method | IGBT induction heating | ||||
| Operating Atmosphere | Vacuum, nitrogen, argon, hydrogen | ||||
| Ultimate Vacuum (pa) | 0.0067 (empty furnace, cooling) (or customised according to customer requirements) | ||||
Product Showcase：
